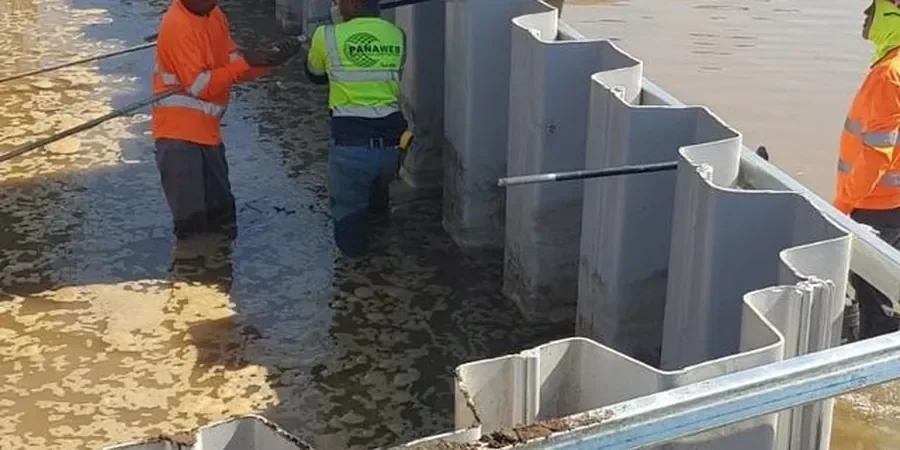

In Charlotte’s active construction landscape, sheet pile walls are driven using vibratory hammers or impact rigs, depending on soil density. The equipment must handle Piedmont residual soils, which can vary from loose sands to stiff clays within a single site. Our team designs each wall profile based on SPT N-values from local borings and groundwater levels measured during wet seasons. Before specifying the interlock type, we run a densidad-cono-arena test to verify compaction near the excavation line. This field control ensures the soil behind the wall behaves as modeled during design.
Sheet pile wall design in Charlotte must account for Piedmont residual soils, perched water, and seismic loads up to 0.2g per IBC.
Scope of work
Area-specific notes
Charlotte’s hot, humid summers bring intense thunderstorms that can saturate the ground in hours. A sudden rise in pore pressure behind a sheet pile wall reduces effective stress and may cause active failure. The design must incorporate weep holes, filter fabric, and a drainage system that stays functional even during heavy rain. Without proper drainage, the wall experiences hydrostatic pressure that can exceed the structural capacity. That is why we always model worst-case groundwater scenarios using monitoring data from nearby wells before finalizing the wall geometry.
Standards used
IBC 2021 (Chapter 18 – Soils and Foundations), ASCE 7-22 (Seismic Loads and Lateral Earth Pressures), ASTM D1586-18 (SPT for soil profiling)
Linked services
Soil Strength Characterization for Walls
Triaxial and direct shear tests on undisturbed samples to define peak and residual friction angles, plus cohesion for clay layers. Results feed directly into the wall stability model.
Groundwater Monitoring and Drainage Design
Installation of piezometers and observation wells to measure seasonal water levels. The data drives the hydrostatic pressure assumptions and the design of dewatering systems.
Typical parameters
Top questions
What soil parameters are needed for sheet pile wall design in Charlotte?
The key parameters are unit weight, friction angle, cohesion (drained and undrained), and groundwater elevation. For Piedmont soils, we also need the coefficient of lateral earth pressure (K0) and the modulus of subgrade reaction for the passive side.
How does the design handle seismic loads per IBC?
Charlotte is in Seismic Design Category B per IBC 2021. The sheet pile wall design includes a pseudostatic seismic coefficient (kh) of 0.5 x PGA, applied as an additional horizontal force. The factor of safety against sliding and overturning must be ≥ 1.1 under seismic conditions.
What is the typical cost for sheet pile wall design in Charlotte?
The design fee ranges from US$1,550 to US$5,590 depending on wall height, number of soil layers, and seismic analysis complexity. This includes soil data review, stability calculations, and a final design report.
Can temporary sheet pile walls be reused on multiple projects?
Yes, temporary walls are often extracted and reused. The design must specify extraction pull forces and allow for sacrificial sections if corrosion or damage occurs. We limit reuse to 2–3 cycles to maintain structural integrity.
