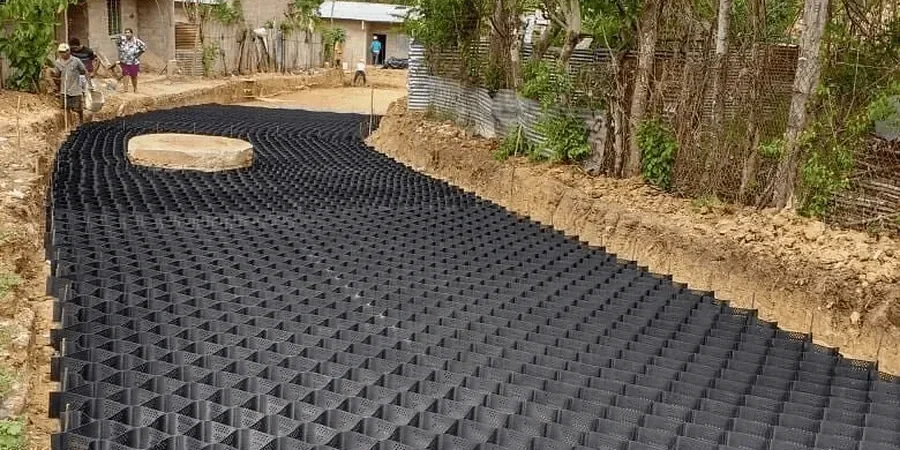

Charlotte sits squarely on the Piedmont plateau, a region underlain by deep residual soils derived from weathered granite and gneiss. These soils, often high-plasticity clays (CH), present a unique challenge for slope and load support. Geocell design in Charlotte must account for this variable saprolite profile, where the depth to partially weathered rock can shift dramatically within a single lot. Before placing a geocell system, the team typically runs a clasificación de suelos to map the plasticity index across the site, ensuring the confinement layer targets the right strata. Without this baseline, the geocell may bear on a zone that softens seasonally, leading to differential movement under pavement or retaining walls.
The real value of geocell design in Charlotte is reducing aggregate thickness by up to 40% while controlling differential movement on residual clay slopes.
Scope of work
- Selecting the correct cell height (typically 75 mm to 200 mm) based on the design axle load and subgrade CBR.
- Specifying a polymeric alloy that resists UV degradation in Charlotte's humid subtropical climate.
- Modeling the composite section (geocell + infill) using the AASHTO 1993 or Mechanistic-Empirical Pavement Design Guide methodology.
Area-specific notes
A six-lane widening project on I-85 near the Catawba River encountered a section of deep fill over original valley soils. The contractor installed a geocell slope facing without accounting for the perched water table that appears after heavy winter rains. Within six months, the lower three rows of geocells bulged outward, and the slope face showed signs of separation. A forensic review revealed that the geocell design had used a factor of safety of 1.3 for sliding, insufficient for the pore pressures measured. The fix required adding a horizontal drainage blanket beneath the geocell and re-anchoring the basal layer with steel stakes driven to refusal.
Standards used
ASTM D6992-16 (Standard Test Method for Accelerated Tensile Creep and Creep-Rupture of Geosynthetic Materials), AASHTO R 50-09 (Standard Practice for Geosynthetic Reinforcement of the Aggregate Base Course of Flexible Pavement Structures), FHWA NHI-09-111 (Design and Construction of Mechanically Stabilized Earth Walls and Reinforced Soil Slopes)
Linked services
Geocell Slope Protection Design
Stabilizes cut and fill slopes up to 1H:1V using three-dimensional confinement. Includes seepage analysis and anchorage layout for Charlotte's clay slopes.
Geocell Base Reinforcement for Pavements
Reduces aggregate base thickness on low-CBR subgrades. Designed per AASHTO MEPDG with local traffic data from Charlotte area DOT counts.
Geocell Retaining Wall Systems
Gravity and geogrid-reinforced walls faced with geocell units. Suitable for heights up to 6 m on residential and commercial sites in the Piedmont.
Construction QA/QC for Geocell Installations
On-site verification of infill compaction, seam strength, and anchorage pullout tests. All results reported per ASTM D6706.
Typical parameters
Top questions
What is the typical cost range for geocell design in Charlotte?
For a standard project in Charlotte, the geocell design and specification package typically ranges from US$810 to US$2,500. This includes the site-specific analysis, cross-section design, and construction drawings. Costs vary with the area of reinforcement, slope height, and the number of subsurface layers evaluated.
How does geocell design differ for Charlotte's residual clay versus sandy soils?
On residual clay (CH), the primary concern is long-term creep and volume change from seasonal moisture. The geocell must be designed with a higher factor of safety against basal sliding, and infill material is often capped with a non-woven geotextile separator. On sandy saprolite (SM), the design focuses on particle interlock and preventing lateral spreading under dynamic loads. The cell height is typically reduced to 75 mm for sand infill.
Do you need a full geotechnical report before starting geocell design?
Yes, a geotechnical investigation is essential. The geocell design relies on the subgrade CBR, soil classification, and groundwater conditions. We recommend at least two test pits per acre to map the soil profile. The ensayo SPT is commonly used to correlate blow counts with CBR for the Piedmont soils, providing the baseline data needed for the design.
