Charlotte sits at 761 feet above sea level, but its Piedmont geology hides a complex story. The region's saprolite profiles vary dramatically from one block to the next. We see differential settlement analysis requests rise when clay content shifts within 20 feet of the surface. The city's mix of residual soils and shallow bedrock demands site-specific evaluation. Without a proper study, even a well-designed foundation can crack. That is why local engineers pair our service with a MASW-Vs30 survey to map stiffness contrasts beneath planned structures. These inputs feed directly into our settlement calculations.

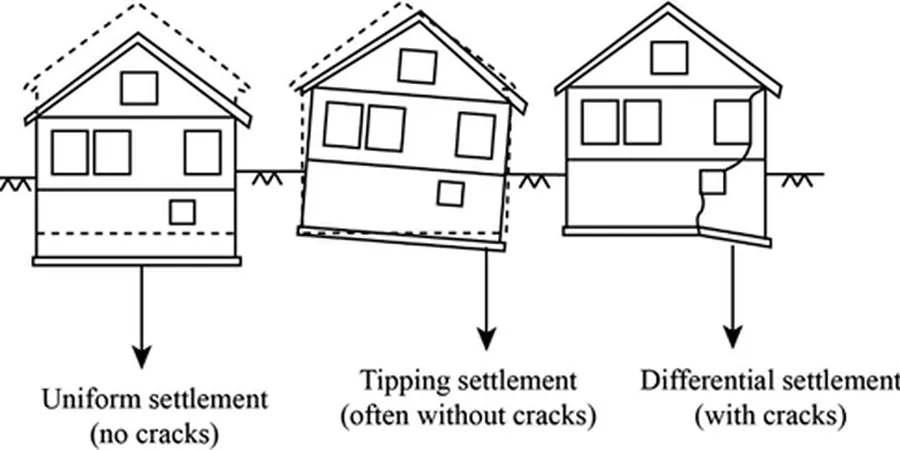

A 1-inch differential movement across a 20-foot span can crack a masonry wall. Charlotte's saprolite makes that risk real.
Scope of work
- Allowable bearing pressure vs. stress distribution
- Consolidation settlement magnitude and rate
- Differential movement between columns or walls
- Time-rate of settlement for staged construction
Area-specific notes
A common mistake in Charlotte: treating all Piedmont residual soil as uniform. Contractors sometimes skip the differential settlement analysis because they assume shallow rock everywhere. The reality hits when one footing sits on weathered granite and another on 15 feet of clayey saprolite. The result is stair-step cracks in load-bearing walls. We have seen this on South Tryon Street projects. The fix requires deep underpinning or soil improvement — both expensive retrofits. A proper analysis upfront costs a fraction of that repair.
Standards used
ASTM D1586-18 (SPT), ASTM D2435-11 (Consolidation), IBC 2018 Chapter 18, ASCE 7-16 (serviceability limits)
Linked services
Consolidation Laboratory Testing
One-dimensional consolidation tests per ASTM D2435 on undisturbed samples from the site. We determine compression index, recompression index, and coefficient of consolidation. These values feed directly into our settlement magnitude and time-rate predictions.
Numerical Settlement Modeling
Finite element or analytical modeling using PLAXIS or Settle3D. We incorporate stratigraphy, load distribution, and groundwater conditions. Output includes total settlement contours and differential movement between adjacent footings under service loads.
This service complements our laboratory testing work for a complete project analysis.
Typical parameters
Top questions
How much does a differential settlement analysis in Charlotte cost?
The typical range for a residential or small commercial study in Charlotte is US$640 to US$2,070. This includes field sampling, lab consolidation tests, and a report with settlement predictions. Larger projects with multiple borings or complex stratigraphy may reach the upper end of that range.
What soil types in Charlotte cause the most differential settlement?
Saprolite derived from mica schist and gneiss is the main culprit. It can vary from stiff clay to decomposed rock within a few feet. Transition zones between residual soil and hard bedrock create the sharpest changes in bearing capacity. These profiles are common along the I-77 corridor.
When should I request a differential settlement study during project planning?
Order it right after the preliminary geotechnical boring program but before final foundation design. The results inform footing size, depth, and reinforcement. Waiting until after slab-on-grade placement risks costly rework if movements exceed structural tolerances.
