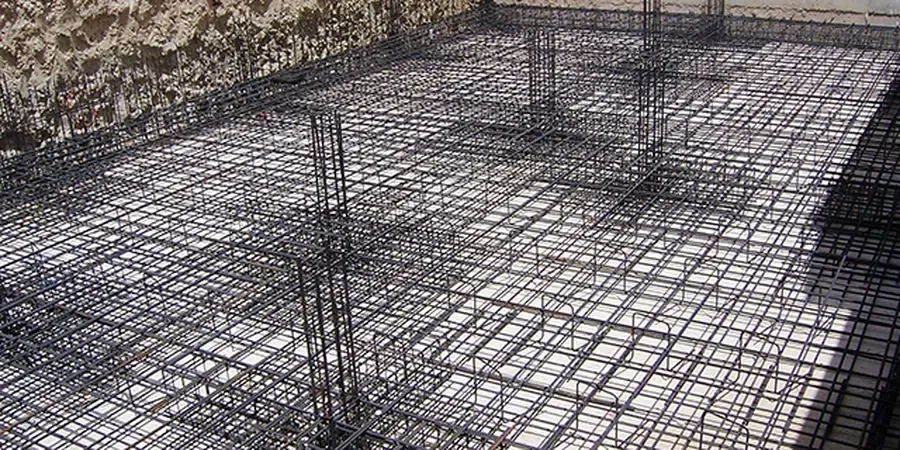

Working in Charlotte, we see a lot of projects where the standard spread footing just won't cut it. The Piedmont region's residual soils—silty sands and clays over weathered granite—can vary dramatically in bearing capacity within a single site. That's when a raft or mat foundation becomes the smart choice. It spreads the load over a larger area, reducing differential settlement in these heterogeneous soils. Before committing to a mat design, we always run a densidad cono arena test to confirm in-situ compaction and a placa de carga to validate modulus of subgrade reaction. That data is critical for sizing the slab thickness and reinforcement correctly.
A properly designed mat foundation in Charlotte's Piedmont soils can reduce differential settlement risk by 60% compared to isolated footings.
Scope of work
Area-specific notes
The biggest risk we see in Charlotte mat foundation design is variable soil stiffness across the slab footprint. If one corner sits on competent saprolite and the other on soft fill, differential settlement can crack the slab or damage columns. Our approach is to run multiple borings or CPT soundings to map soil variability before finalizing the mat geometry. We then use finite element analysis to model the soil-structure interaction and adjust reinforcement or thickness where needed.
Standards used
IBC 2021 Chapter 18 – Soils and Foundations, ASCE 7-22 – Minimum Design Loads, ACI 318-19 – Building Code Requirements for Structural Concrete, ASTM D1586-18 – Standard Test Method for SPT, ASTM D2487-17 – Classification of Soils for Engineering Purposes
Linked services
Subsurface Exploration
Boring and sampling at planned column locations using SPT and Shelby tubes to characterize soil layers and groundwater conditions.
Plate Load Testing
In-situ bearing capacity and modulus of subgrade reaction tests on prepared subgrade to validate design assumptions.
Settlement Analysis
One-dimensional consolidation and finite element modeling to predict total and differential settlement under design loads.
Typical parameters
Top questions
What soil conditions in Charlotte make a raft foundation the right choice?
Raft foundations work well when bearing capacity is low but uniform—common in Charlotte's residual silty sands and clays. They also help when groundwater is shallow or when column loads are high and variable across the site.
How much does a raft foundation design study cost in Charlotte?
A typical geotechnical investigation for a mat foundation in Charlotte ranges from US$1,150 to US$4,320, depending on the number of borings, lab tests, and analysis complexity. Contact us for a project-specific quote.
Do you need a separate structural engineer for the raft design?
Yes. We provide the geotechnical parameters—bearing capacity, subgrade modulus, settlement estimates—and the structural engineer uses those to size the mat thickness, reinforcement, and detailing per ACI 318.
Can a mat foundation be combined with piles in Charlotte?
Absolutely. Piled raft foundations are common for high-rise buildings in Uptown where the mat transfers load to deep bearing strata while the piles control settlement. We design the interface based on both geotechnical and structural requirements.
