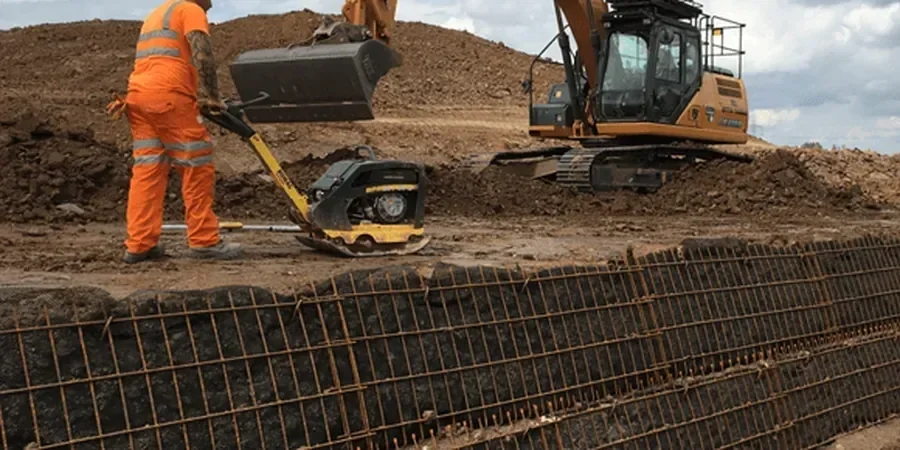

Many construction firms in Charlotte assume that any fill material can be compacted to support a road embankment, only to discover differential settlement or slope creep months later. The region's Piedmont geology, with its deep residual soils from weathered granite and gneiss, behaves nothing like the alluvial plains of the coast. Without a proper geotechnical investigation that includes moisture-density curves and shear strength parameters, embankments built on these soils can lose up to 30% of their design height during the first wet season. A reliable road embankment design starts with understanding the borrow source and the subgrade's load-bearing capacity, and we combine field compaction tests with a CBR test to verify the material's California Bearing Ratio before specifying layer thickness.
A road embankment that fails in Charlotte's Piedmont soils typically settles not in the first month, but after the second wet-dry cycle.
Scope of work
Area-specific notes
A common oversight in Charlotte is neglecting the effect of root channels and old tree stumps in the upper 3 to 4 feet of residual soil. These biogenic voids act as preferential flow paths for water, softening the embankment base and reducing shear strength along the failure surface. We have documented cases where a 20-foot-high embankment on Sardis Road lost 4 feet of crest width after two consecutive heavy rain events because the drainage layer was undersized. Another risk is using fill material with more than 5% organic content, which decomposes over time and creates voids that cause sudden pavement cracking. Our laboratory always runs Atterberg limits and organic content tests on borrow samples before any embankment design is finalized.
Watch how it works
Standards used
ASTM D698-12 (Standard Proctor), AASHTO T-193 (CBR), FHWA-NHI-05-037 (Slope Stability), ASTM D3080-11 (Direct Shear)
Linked services
Borrow Source Investigation
Field sampling and laboratory testing of potential fill materials to determine compaction characteristics, CBR, and long-term settlement behavior.
Slope Stability Analysis
Limit equilibrium analysis using Bishop, Spencer, and Morgenstern-Price methods for both static and pseudo-static seismic conditions per ASCE 7.
Drainage and Filter Design
Design of underdrains, chimney drains, and blanket drains with filter compatibility criteria per FHWA and AASHTO specifications.
Construction Quality Assurance
On-site density testing, moisture control, and periodic verification of compaction effort with nuclear gauge and sand cone methods.
Typical parameters
Top questions
How much does a road embankment design study cost in Charlotte?
A complete geotechnical study for a road embankment project in Charlotte typically ranges between US$1,100 and US$3,890, depending on the embankment height, number of borrow sources, and required laboratory tests. This includes field investigation, lab testing, stability analysis, and a written report.
What is the difference between Standard Proctor and Modified Proctor for embankment design?
Standard Proctor (ASTM D698) applies a lower compactive effort (12,400 ft-lbf/ft³) and is used for fills that will not support heavy traffic, while Modified Proctor (ASTM D1557) uses 56,000 ft-lbf/ft³ to simulate high-traffic or heavy-load conditions. In Charlotte, most highway embankments require Modified Proctor specifications to achieve 95% of maximum dry density.
How long does it take to get the geotechnical report for an embankment project?
Depending on the scope, a typical report is delivered within 2 to 3 weeks from the date of field sampling. This time includes laboratory curing for Proctor tests and shear strength testing. Expedited turnaround is available for urgent projects.
