Charlotte sits on a mix of weathered granite, schist, and clay-rich saprolite that can change completely within a single block. We have seen projects near the Uptown district hit competent rock at 6 m, while sites in the SouthPark area stay in residual soil for 18 m or more. That variability demands geotechnical excavation monitoring from the first bucket load. Without real-time data on wall deflection, adjacent settlement, and water pressure, a cut that looks stable on paper can become a problem before lunch. We install inclinometers, piezometers, and surface settlement points before any mass excavation begins. Data comes in daily, sometimes hourly when the work is close to existing structures. The goal is simple: catch the trend before it becomes a crack in the neighboring building. We also run a MASW-Vs30 survey on sites where the rock profile is uncertain, which gives us shear-wave velocity profiles that feed directly into the monitoring thresholds we set.
In Charlotte, residual soil over weathered rock can vary 12 m in depth within one city block — excavation monitoring is the only way to stay ahead of that uncertainty.
Scope of work
Area-specific notes
The difference between a site in the Dilworth neighborhood and one near the airport is dramatic. In Dilworth the saprolite can be 15 m deep before you hit fresh rock, while the airport area often shows gneiss at less than 5 m. A monitoring plan designed for one will fail on the other. The risk is not just financial — it is safety. We have seen a braced excavation in deep clay south of Charlotte deflect 40 mm in a single weekend because dewatering was not tied to the monitoring system. That is why every geotechnical excavation monitoring plan we write starts with a site-specific instrument layout, not a template. We calibrate trigger levels using the actual soil parameters from the investigation phase, and we cross-check them against the CBR values from the subgrade layer when the excavation is for a highway cut. The result is a risk profile that matches the ground we are actually digging in, not a generic assumption.
Watch how it works
This service complements our laboratory testing work for a complete project analysis.
Standards used
IBC 2018 Section 1806 (excavation support and monitoring), ASTM D6230-21 (inclinometer installation and data reduction), ASTM D5092-21 (piezometer installation and monitoring), FHWA-NHI-14-007 (deep excavation monitoring guidelines)
Linked services
Automated Inclinometer and Survey Monitoring

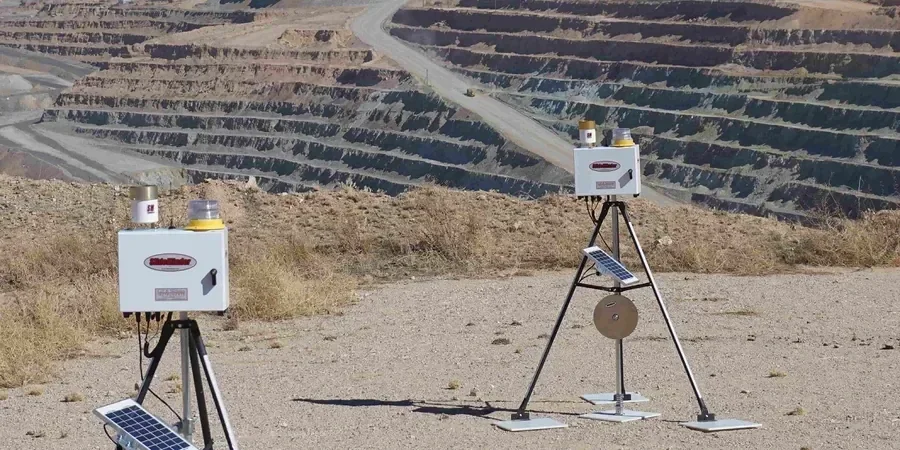

We install in-place inclinometers and automated total stations that deliver real-time deflection data. The system logs readings at 15-minute intervals and sends alerts if movement approaches the threshold. Suitable for deep excavations in Uptown Charlotte where adjacent structures are within 10 m of the cut.
Pore Pressure and Dewatering Monitoring
Vibrating-wire piezometers placed at multiple depths track pore pressure changes during dewatering. We correlate drawdown rates with wall deflection to prevent bottom heave or piping. This is critical for excavations in the saturated saprolite zones common in the SouthPark corridor.
Adjacent Structure and Utility Monitoring
We install tilt beams, crack gauges, and settlement points on all buildings and utilities within the zone of influence. Readings are compared against IBC allowable settlement limits. For sensitive structures like the historic buildings in the Fourth Ward, we tighten the threshold to 50 percent of the code limit.
Typical parameters
Top questions
When is geotechnical excavation monitoring required by code in Charlotte?
IBC 2018 requires monitoring for excavations deeper than 6 m (20 ft) or when the excavation is within a distance equal to the excavation depth from an existing structure. In Charlotte, the local building department often enforces monitoring for any excavation that enters the saprolite layer, regardless of depth, because of the variable rock profile. We recommend a monitoring plan for any cut deeper than 4 m in the Uptown or SouthEnd areas.
How much does geotechnical excavation monitoring cost for a typical Charlotte project?
For a standard 10 m deep excavation with 50 m of wall length, the cost ranges between US$960 and US$2,300 for instrument installation and four weeks of monitoring with daily reports. The final figure depends on the number of inclinometers, piezometers, and settlement points required. Automated telemetry adds a small monthly fee for the cellular data plan.
What is the difference between an inclinometer and a tilt beam?
An inclinometer measures lateral soil movement along a vertical casing installed in a borehole. It captures the entire deflection profile of the excavation wall. A tilt beam, on the other hand, measures angular rotation at a single point on a structure or wall face. We use inclinometers for soil mass movement and tilt beams for building response. Both feed into the same monitoring dashboard.
