Charlotte expanded rapidly from a railway hub into a major financial center, but its Piedmont geology — deep residual soils over weathered granite and gneiss — creates variability beneath every street. A CBR study for road design in Charlotte reveals the subgrade's actual bearing capacity before placing base layers or asphalt. Without this test, pavement thickness assumptions can fail within months. We combine the CBR penetration test with a plate load test to verify modulus of subgrade reaction, and we cross-check results with natural moisture content to anticipate seasonal softening.
A soaked CBR of 3 versus 8 can mean 4 inches of extra base course — that is real construction cost on the line.
Scope of work
- Soaked CBR after 96-hour immersion — simulates worst-case moisture
- Expansion measurement during soaking — critical for expansive Piedmont soils
- Correction curves for non-linear stress-strain behavior
Area-specific notes
Charlotte's hot summers and heavy spring rain create a cycle of drying and swelling in the upper subgrade. A CBR study for road design in Charlotte that only tests dry samples can underestimate post-construction softening by 40% or more. The Piedmont's saprolite layers lose strength quickly when saturated, so we always run soaked CBR on at least three moisture conditions. Ignoring this variability leads to pavement fatigue, longitudinal cracking, and premature overlays — expenses that dwarf the cost of proper testing upfront. Pairing the CBR with subgrade stabilization and compaction control closes the loop.
Standards used
ASTM D1883-16 — Standard Test Method for California Bearing Ratio of Laboratory-Compacted Soils, AASHTO T-193 — Standard Method of Test for the California Bearing Ratio, ASTM D698 / D1557 — Laboratory Compaction Characteristics of Soil
Linked services
Field Sampling & Undisturbed Block Extraction
We extract undisturbed blocks from subgrade at proposed road alignments, preserving natural moisture and density. Samples are sealed, transported to the lab within 24 hours, and trimmed for CBR molds. This method captures the in-situ condition better than remolded samples alone.

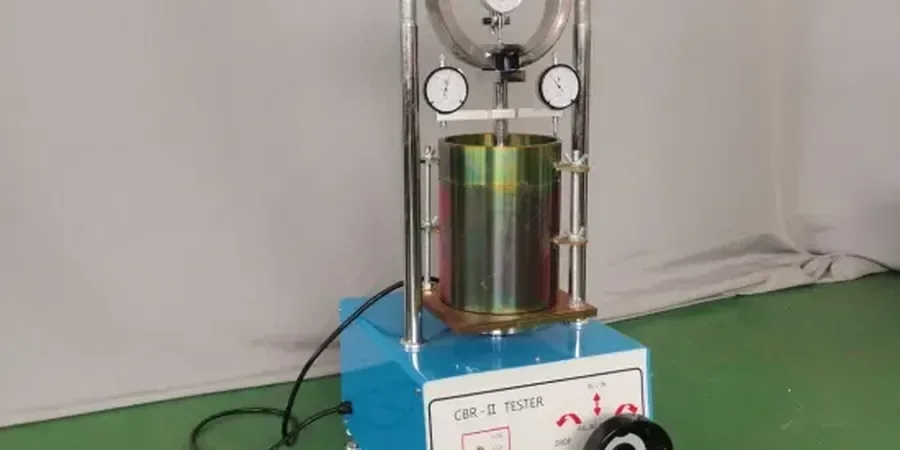

Soaked & Unsoaked CBR Testing
Full suite of laboratory CBR tests at standard and modified Proctor energy. We run soaked (96-hour immersion) and unsoaked series, measure expansion, and correct the load-penetration curve per ASTM D1883. Results include CBR at 0.1 and 0.2 inches penetration.
Pavement Structural Design Integration
We translate CBR values into design CBR (considering soaked condition, traffic level, and reliability) and recommend base thickness per AASHTO 1993 or Mechanistic-Empirical (MEPDG). Deliverables include structural number, required base/subbase depths, and subgrade treatment options if CBR is below 3.
Typical parameters
Top questions
What is the difference between soaked and unsoaked CBR?
Soaked CBR simulates worst-case moisture after rain or groundwater rise — the sample is immersed for 96 hours before penetration. Unsoaked CBR tests at as-compacted moisture. For Charlotte's Piedmont clays, soaked CBR can drop to half the unsoaked value, so we always recommend both for road design.
How many CBR tests are needed for a typical subdivision road in Charlotte?
At least one CBR per soil type or per 500 feet of alignment, whichever is more frequent. For variable Piedmont profiles we recommend one test per 300 feet plus a check sample if cuts expose saprolite or clay zones. Our lab can run up to 12 molds per week for larger projects.
What is the typical cost range for a CBR study for road design in Charlotte?
The cost for a complete CBR study — including sampling, compaction, soaked and unsoaked testing, and a design report — ranges between US$150 and US$330 per sample location. Volume discounts apply for projects with 6 or more locations. The price depends on sample condition, required compaction effort, and turnaround time.
Does your lab accept contractor-compacted samples for CBR testing?
We prefer to control compaction ourselves to guarantee Proctor effort and moisture, but we can test contractor-prepared molds if they are sealed and labeled per our protocol. You must provide compaction data and moisture content at the time of molding. We then run the penetration and report CBR as-received; no correlation to standard Proctor is applied without a companion test.
