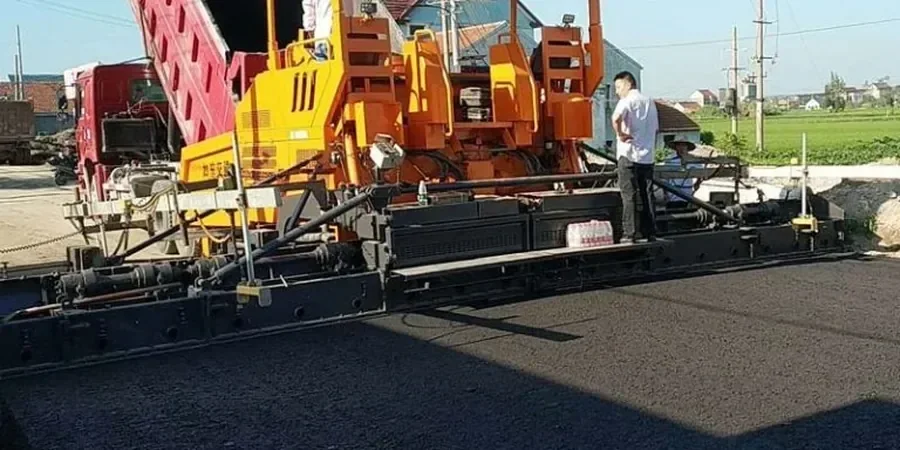

A common mistake in Charlotte is assuming that the native clay-rich Piedmont residuum can support flexible pavement without a deep subgrade evaluation. Contractors often rely on default CBR values from county tables, but those values rarely reflect the actual moisture-sensitive conditions after grading. Without site-specific resilient modulus data, the structural number calculation becomes guesswork. The result is premature fatigue cracking or rutting within two years. A proper flexible pavement design in Charlotte must start with in-situ CBR testing and compaction control, ideally paired with a CBR vial analysis to simulate soaked conditions.
In Charlotte's Piedmont soils, soaked CBR after 96 hours can drop 40% from unsoaked values, directly affecting the structural number.
Scope of work
Area-specific notes
Subgrade variability is the biggest risk in Charlotte. The soil transitions from decomposed granite in the west (high CBR, low plasticity) to residual clay from mica schist in the east (low CBR, high plasticity). A pavement designed for the west side may fail on the east side within 18 months. Differential settlement at utility trench crossings is another common failure. Applying a subrasante vial improvement layer with lime or cement stabilization before the base course can reduce this risk. Without it, the pavement section loses support and cracks longitudinally along the trench line.
Standards used
AASHTO Guide for Design of Pavement Structures (1993), ASTM D1883-21 (CBR of Compacted Soils), ASTM D1557-12e1 (Modified Proctor), NCDOT Pavement Design Manual (2020)
Linked services
In-Situ CBR (DCP)
Dynamic cone penetrometer profiling every 0.5 ft up to 3 ft depth. Direct correlation to CBR in real time. Ideal for large parking lots and secondary roads.
Laboratory Soaked CBR
Compacted at 95% modified Proctor, soaked 96 hours with surcharge. Reports CBR at 0.1 and 0.2 inch penetration. ASTM D1883 compliant.
Resilient Modulus (Mr) Testing
Repeated load triaxial test per AASHTO T-307. Provides Mr for mechanistic-empirical design (MEPDG). Recommended for high-traffic corridors.
Subgrade Stabilization Design
Lime or cement dosage curves based on Eades-Grim pH test and unconfined compressive strength. Delivers target strength for layer coefficient adjustment.
Typical parameters
Top questions
What is the typical CBR range for Charlotte subgrade?
For Piedmont residual clays, the soaked CBR ranges from 4 to 12 percent. Decomposed granite areas in western Charlotte can reach 15 to 25 percent. Testing after grading is essential because compaction and moisture alter the value.
How much does flexible pavement design testing cost in Charlotte?
A typical scope including DCP profiling, 3 soaked CBR tests, and resilient modulus correlation costs between US$1,510 and US$5,940. The final price depends on the number of test locations and whether stabilization design is included.
Do I need resilient modulus or just CBR for design?
For low-volume roads (< 100,000 ESALs), CBR is sufficient. For arterial roads or any design using the MEPDG, resilient modulus is required. NCDOT requires Mr for all state-maintained routes.
What happens if I skip subgrade stabilization?
Without stabilization, Charlotte's clay loses strength when wet. The pavement section may experience rutting within 2 years and fatigue cracking within 5. Stabilization with lime or cement doubles the effective layer coefficient and extends pavement life.
