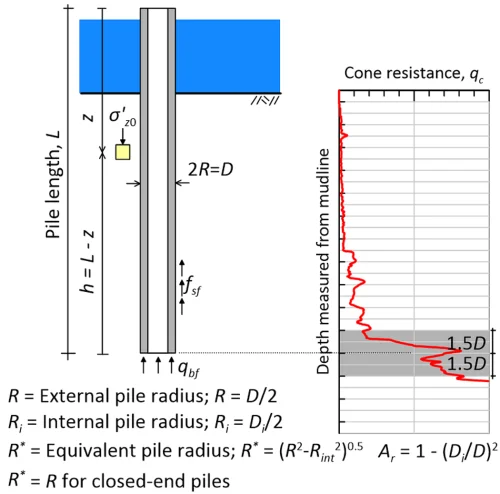

In Charlotte, the transition from residual soils to partially weathered rock is rarely uniform. We have seen projects where the top 10 to 15 feet of Piedmont saprolite provides moderate skin friction, but below that the N-values jump from 20 to over 60 blows per foot, indicating a strong bearing stratum. Separating these two resistance components is essential for safe pile design, especially when you consider that the local geology includes deep clay seams that can reduce shaft adhesion. We routinely perform static load tests and combine them with a [CPT](ensayo-cpt) to profile the friction ratio along the pile shaft, ensuring that neither skin nor end bearing is overestimated.
In Charlotte's Piedmont geology, skin friction can vary by 40% within 10 meters due to weathering transitions alone.
Scope of work
Area-specific notes
Charlotte's rapid urban expansion over the past two decades has pushed development into areas underlain by deep residual soils with highly variable strength. Without a proper separation of skin friction and end bearing, piles may settle more than predicted, especially under sustained service loads. In one project near the SouthPark corridor, ignoring the effect of slickensided clay seams in the saprolite caused a 30% reduction in shaft capacity. We have also seen cases where end bearing was overestimated because the bearing layer was only a thin crust over soft rock. Addressing these risks early saves both schedule and budget.
Standards used
IBC 2021 Chapter 18, ASCE 7-16, ASTM D1143-13 (Static Load Test), ASTM D2487-17 (Soil Classification)
Linked services
Static Load Test Interpretation
Instrumented static load tests using strain gauges or Osterberg cells to measure load distribution along the pile shaft. We separate the skin friction component from the end bearing using the Davisson offset method and compare results with design assumptions per IBC 2021.
Numerical Skin Friction Modeling
Finite element modeling of pile-soil interaction using PLAXIS or FLAC to simulate shaft resistance and base resistance under working and ultimate loads. We calibrate the model with local soil data from Charlotte projects and apply the alpha and beta methods for cohesive and cohesionless soils.
Typical parameters
Top questions
What is the difference between skin friction and end bearing in pile design?
Skin friction is the load transferred along the pile shaft through soil-pile adhesion, while end bearing is the load transferred at the pile tip to a competent bearing stratum. In Charlotte's Piedmont soils, skin friction often governs in the upper residual layers, while end bearing becomes dominant once the pile reaches partially weathered rock or dense saprolite. Both components are summed to obtain the ultimate capacity.
How much does a pile skin friction vs. end bearing analysis cost in Charlotte?
The typical cost for a combined analysis including static load test interpretation and numerical modeling ranges between US$1,090 and US$3,020, depending on the number of test piles and the complexity of the soil profile. This includes field instrumentation, data reduction, and a detailed report with capacity curves.
Which soil conditions in Charlotte most affect the skin friction component?
Residual soils derived from granite gneiss and schist dominate Charlotte's subsurface. The presence of mica flakes, slickensided clay seams, and variable moisture content can reduce skin friction by up to 40% compared to uniform sands. We recommend a CPT or pressuremeter test on every site to capture these variations.
Can end bearing be relied upon in weathered rock in Charlotte?
Only if the rock quality designation (RQD) is above 50% and the unconfined compressive strength exceeds 300 psi. Many sites in Charlotte have a thin weathered rock crust over soft saprolite, which can lead to punch-through failure if end bearing is the only mechanism considered. A conservative approach combines both skin friction and end bearing with a factor of safety of 2.5.
