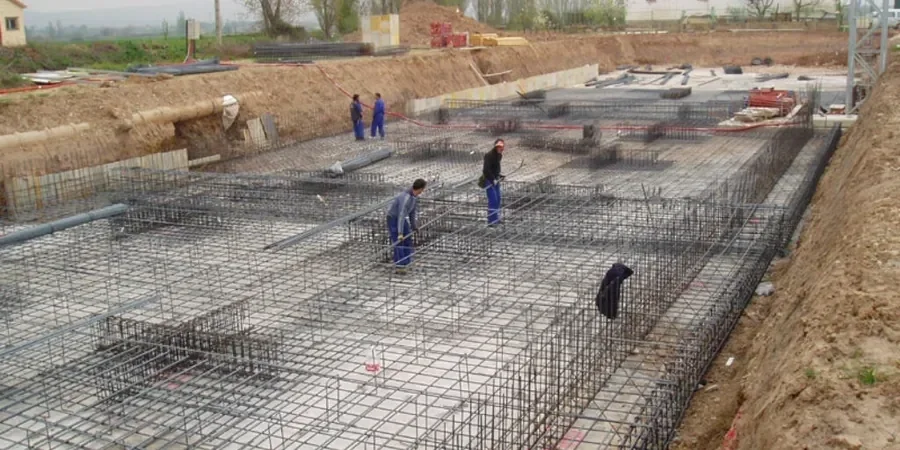

Charlotte sits squarely on the Piedmont Plateau, where deep red clays and partially weathered rock create a unique set of conditions for shallow foundation design. The region's high annual rainfall — around 43 inches — saturates these clay-rich soils, reducing their bearing capacity during wet months. In our experience working across Mecklenburg County, the key to a successful shallow foundation design lies in understanding how the local saprolite behaves under changing moisture levels. We routinely pair our bearing capacity analysis with permeability field tests to assess drainage, and we rely on plate load tests to verify modulus of subgrade reaction before placing footings. Getting these parameters right early on saves time and avoids costly rework later.
On Charlotte's Piedmont clay, ignoring perched water tables during shallow foundation design often leads to differential settlement within two years.
Scope of work
Area-specific notes
ASCE 7-22 requires that shallow foundation design in Charlotte account for seismic site class based on Vs30 measurements, because parts of the city sit on weathered rock (Site Class C) while others have deeper soil profiles (Site Class D). The risk of differential settlement increases when footings span from cut to fill — common in Charlotte's hilly terrain. Our reports explicitly flag these transition zones and recommend stepped footings or geogrid reinforcement where the bearing stratum changes abruptly. We've seen slab failures in the SouthPark area that traced directly back to ignoring the soil variability across a single building footprint.
Watch how it works
Standards used
ASCE 7-22 (Minimum Design Loads, Chapter 12 – Seismic), IBC 2021 (Chapter 18 – Soils and Foundations), ASTM D1196-12 (Plate Load Test – Modulus of Subgrade Reaction)
Linked services
Spread Footing & Mat Foundation Design
Complete bearing capacity analysis, settlement estimates, and reinforcement layout for isolated footings, combined footings, and mat foundations on Piedmont residual soils.
Slab-on-Grade & Stiffened Slab Design
Design of floor slabs for residential and light commercial projects, including moisture vapor control, reinforcement detailing, and edge beam sizing for Charlotte's clay conditions.
Typical parameters
Top questions
What is the typical bearing capacity for shallow foundations in Charlotte?
For the residual clays and saprolite common in Charlotte, allowable bearing capacity typically ranges from 2,500 to 5,000 psf. However, site-specific testing like plate load tests or SPT correlations is necessary because values can drop below 2,000 psf in areas with deep weathering or high moisture content.
How much does a shallow foundation design study cost in Charlotte?
A comprehensive shallow foundation design study in the Charlotte area generally falls between US$2,010 and US$3,540. The final cost depends on the number of test locations, laboratory testing required, and the complexity of the structural loads. Contact us for a project-specific quote.
Do Charlotte's building codes require seismic considerations for shallow foundations?
Yes. IBC 2021 and ASCE 7-22 require seismic site classification for all new buildings in Charlotte. Even though the region is not in a high seismic zone, Site Class D soils can amplify ground motion. We determine the site class using vs30/" data-interlink="1">shear wave velocity measurements or SPT N-values to ensure the foundation design meets code.
What causes differential settlement in shallow foundations on Charlotte clay?
Differential settlement in Charlotte's Piedmont clay is most often caused by moisture changes — seasonal wetting and drying cycles that swell and shrink the clay. Another common cause is transitioning from cut to fill areas, where the bearing stratum changes abruptly within the same building footprint. Proper geotechnical investigation and foundation design are critical to mitigate this risk.
