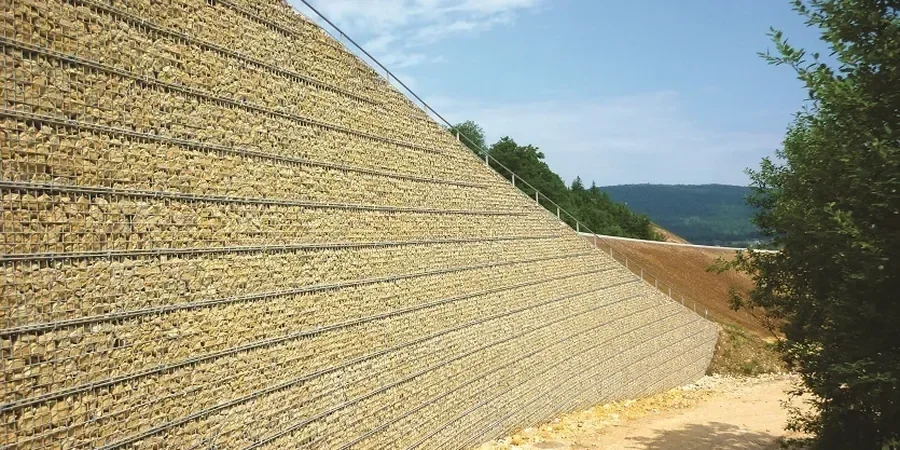

Charlotte sits on the Piedmont Plateau underlain by residual soils derived from granitic and gneissic bedrock, typically sandy silts and silty sands with low plasticity. These materials, while generally competent, exhibit significant variability in strength and collapsibility within short distances, especially in the transition zones near creeks and former agricultural fills. For any MSE wall design in Charlotte, understanding the in-situ compaction characteristics and shear strength profile is non-negotiable. We routinely complement our MSE analyses with ensayo de clasificación de suelos to confirm the plasticity index and with ensayo de corte directo to obtain drained friction angles for the reinforced fill and foundation soils.
For MSE walls in Piedmont residual soils, the drained friction angle of the reinforced fill must be validated by direct shear testing, not just assumed from classification.
Scope of work
- Soil classification per ASTM D2487 to confirm the backfill meets AASHTO M 288 requirements for reinforced fill.
- Corrosion potential testing (pH, resistivity, chlorides, sulfates) to select appropriate galvanized or coated steel reinforcements.
- Global stability analysis using Spencer's method for both internal and external failure surfaces.
- Deformation analysis under static and seismic conditions per ASCE 7-16.
Area-specific notes
A common oversight in MSE wall design in Charlotte is ignoring the collapsibility of the residual soil when subjected to prolonged wetting. During heavy rainfall events typical of the region, the low-density saprolite can lose up to 50% of its strength. We use double-ring infiltrometers and plate load tests on prepared subgrades to quantify this risk. Furthermore, we conduct ensayo de compresión simple on undisturbed block samples extracted from the foundation zone to detect collapse potential. Without these checks, the wall may experience excessive vertical and lateral deformations within the first two years.
Standards used
AASHTO LRFD Bridge Design Specifications (8th Ed., 2017), IBC 2018 (Chapter 18, Soils and Foundations), ASTM D2487 (Unified Soil Classification System), ASTM D3080 (Direct Shear Test of Soils), ASCE 7-16 (Minimum Design Loads for Buildings and Other Structures)
Linked services
Subsurface Exploration & Soil Sampling
Boreholes and test pits to characterize the foundation and reinforced fill materials, including in-situ density and moisture content.
Laboratory Strength Testing
Direct shear, triaxial (CU), and unconfined compression tests to define drained and undrained shear strength parameters for design.
Corrosion Potential Assessment
pH, resistivity, chloride, and sulfate testing on backfill and foundation soils to select durable reinforcement materials.
Seismic & Deformation Analysis
Two-dimensional limit equilibrium and finite element modeling to evaluate wall stability under static and seismic loading.
Typical parameters
Top questions
What is the typical design life of an MSE wall in Charlotte?
With proper material selection and corrosion protection, MSE walls in Charlotte are designed for a minimum service life of 75 years, in accordance with AASHTO LRFD. The galvanized steel strips or geogrids are selected based on the soil's corrosivity, which we assess through laboratory testing.
What are the main failure modes for MSE walls in Piedmont soils?
The most common failure modes are external sliding due to low foundation friction, internal pullout of reinforcements from the reinforced fill, and global instability along deep-seated failure surfaces through the saprolite. Each mode is checked using limit equilibrium methods with partial factors per AASHTO.
How much does MSE wall design in Charlotte cost?
For a typical residential or commercial project in Charlotte, the cost for geotechnical design and analysis of an MSE wall ranges between US$1.120 and US$4.130, depending on wall height, site access, and the extent of required laboratory testing. This includes field exploration, laboratory testing, analysis, and a final design report.
Is a geotechnical report always required before building an MSE wall?
Yes. IBC 2018 requires a geotechnical investigation for any retaining structure exceeding 4 ft in height or supporting a surcharge. For MSE walls, the report must include soil classification, shear strength, corrosion potential, and settlement analysis to ensure the wall's long-term performance.
Can MSE walls be built on steep slopes in Charlotte?
Yes, but the foundation must be benched into competent residual soil or bedrock. The design must account for the reduced bearing capacity and potential for differential settlement on sloping ground. We typically recommend a minimum embedment of 2 ft into the natural ground and a global stability check with a factor of safety of at least 1.5.
